SwipeLayout
https://github.com/chthai64/SwipeRevealLayout
의존성 추가
1
implementation 'com.chauthai.swipereveallayout:swipe-reveal-layout:1.4.1'
Adapter 등록 및 리스너 추가
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
public class NoteAdapter extends RecyclerView.Adapter<NoteAdapter.ViewHolder>
implements OnNoteItemClickListener {
static ArrayList<Note> items = new ArrayList<Note>();
private final ViewBinderHelper binderHelper = new ViewBinderHelper();
@NonNull
@Override
public ViewHolder onCreateViewHolder(@NonNull ViewGroup viewGroup, int viewType) {
LayoutInflater inflater = LayoutInflater.from(viewGroup.getContext());
View itemView = inflater.inflate(R.layout.note_item, viewGroup, false);
return new ViewHolder(itemView, this, layoutType);
}
@Override
public void onBindViewHolder(@NonNull ViewHolder viewHolder, int position) {
Note item = items.get(position);
binderHelper.setOpenOnlyOne(true);
binderHelper.bind(viewHolder.swipelayout,Integer.toString(item.get_id()));
viewHolder.bind(item);
viewHolder.setItem(item);
viewHolder.setLayoutType(layoutType);
}
public class ViewHolder extends RecyclerView.ViewHolder {
SwipeRevealLayout swipelayout;
private View deleteLayout;
private View editLayout;
LinearLayout layout1;
LinearLayout layout2;
... (변수 선언 생략)
NoteDatabase database;
public ViewHolder(View itemView, final OnNoteItemClickListener listener, int layoutType) {
super(itemView);
swipelayout = (SwipeRevealLayout) itemView.findViewById(R.id.swipe_layout);
deleteLayout = itemView.findViewById(R.id.txtDelete);
... 생략
// 데이터 베이스 객체 얻어오기
Fragment1 fragment1 = new Fragment1();
database = NoteDatabase.getInstance(fragment1.context);
setLayoutType(layoutType);
}
// Swipe Layout (삭제, 수정) 리스너 설정
public void bind(final Note item){
deleteLayout.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// 클릭한 Swipe Layout의 일기id (DB)
int position = item._id;
// 리싸이클러 뷰 아이템 목록에서 안보이게 하기
items.remove(getAdapterPosition());
notifyItemRemoved(getAdapterPosition());
// 일기 삭제 (DB 테이블 삭제)
deleteNote(position);
}
});
}
/* swipe 삭제 버튼 누르면 DB에서 해당 일기를 찾아 삭제 */
public void deleteNote(int position){
String sql = "delete from " + NoteDatabase.TABLE_NOTE +
" where " +
" _id = " + position;
database.execSQL(sql);
}
}
Swipe 레이아웃과 관련된 코드가 아닌건 전부 생략하였음
Swipe Layout.xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<?xml version="1.0" encoding="utf-8"?>
<com.chauthai.swipereveallayout.SwipeRevealLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:id="@+id/swipelayout"
android:layout_width="match_parent"
android:layout_height="wrap_content"
app:dragEdge="right"
app:mode="same_level">
<!--Swipe Layout-->
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="match_parent"
android:orientation="horizontal">
</LinearLayout>
<!--Main Layout-->
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_gravity="center_vertical"
android:gravity="center_vertical"
android:orientation="horizontal"
android:padding="20dp">
</LinearLayout>
</com.chauthai.swipereveallayout.SwipeRevealLayout>
현재 만들고 있는 다이어리 앱 xml 코드는 길어서 예제 파일의 xml을 첨부하였다.

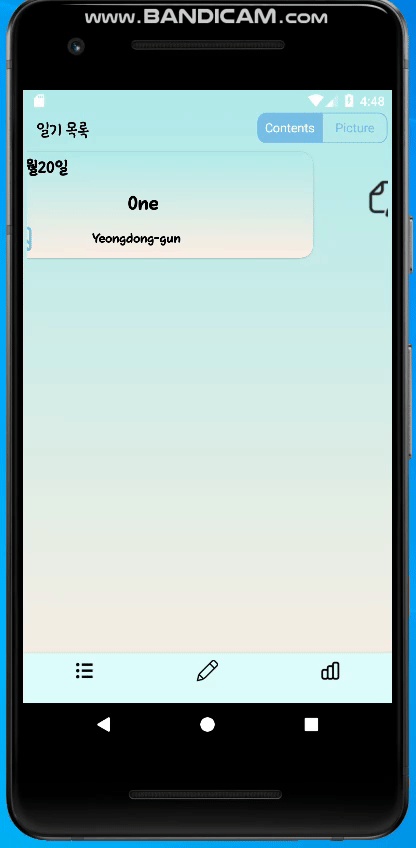

Swipe Layout 부분이 스와이프 했을 때 보이는 부분
Main Layout 부분은 기본으로 보이는 부분
